Production / Assembly

Our machinery is designed for the production of components ranging from high-end to small series for motorsport, aviation and industry.



State-of-the-art CNC-machines have a network connection to the CAD-CAM working places. In this way, highest precision and optimal workflow in the manufacturing process are guaranteed in an effective and highly efficient way.



We are:

  • DIN ISO 9001 : 2015 certified
  • QSF-A certified (certified company for aviation, aerospace and equipment industry)
  • equipped with special tools for the machining of special high-resistant materials (e.g.titanium alloy)

Performances in the fields of production/ manufacture:

  • CNC-controlled chipping
  • Jig making
  • Welding
  • Assembly of components
  • Mechanical manufacturing of components

We are equipped with state-of-the-art technologies, facilities and competences, such as:

Our CNC machine workshop

CAM-supported, processing centre for the machining of complex components (component dimension of up to 1.50m in length)



Hermle machining centres:

  • 5-axis simultan, Heidenhain iTNC 530, range of traverse up to: 800 x 600 x 500 mm

- 2x Hermle C 600 U

- Hermle C 20 U

- Hermle C 800 U

- Hermle C 30 U

  • 4-axis simultan, Heidenhain iTNC 430, range of traverse up to: 1000 x 720 x 630 mm

- Hermle U 1000 A



Grob machining centres:

  • 5-axis simultan, Heidenhain iTNC 530, range of traverse up to: 800 x 950 x 1020 mm

- Grob G550

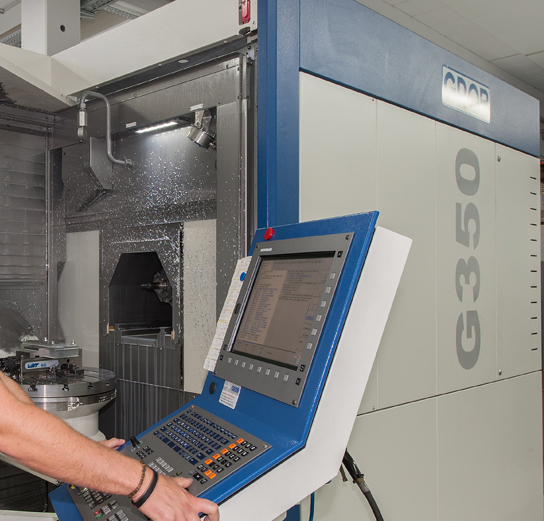

- Grob G350

- Grob G351



Reiden machining centres:

  • 5-axis simultan, Heidenhain iTNC 430, range of traverse up to: 1000 x 1100 x 810 mm

- Reiden RX 10



Mazak turning Centres:

  • Maximum turning diameter: 320 mm, peak length up to: 1000mm, power tools

- Mazak QTNX 250 2M 1000

- Mazak QTNX 250 2M 500



Agie erosion machines

  • Sink-erosion machine, range of traverse: 500 x 350 x 500 mm

- Agie HS3

  • Wire eroding machine, range of traverse: 500 x 350 x 400 mm

- Agie Progress V3



  • Tool preparation with Zoller Venturion 450 tool measurement
  • Erosion centres for the highest precision and finest machining by wire-eroding and sink-erosion
  • Own fixture, manufacturing equipment and mould construction
  • TIG and MAG welding working places
  • 100 tonne press
  • Glass bead blasting facility
  • Fixture plate 2000 x 1000 mm
  • Universal milling machine Deckel FP1
  • Universal milling machine Weiler
  • Bending machine up to 1000 mm
  • Guillotine shears up to 1000 mm
  • Laser marking machine for marking of flat and round components
